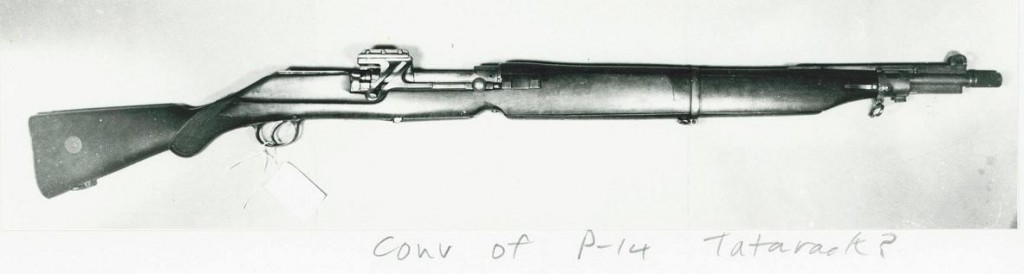

Nothing else known about the P14 Enfield semiauto conversion.



  1. i think this might be a scoti desiegn as scoti converted anumber of p14 to smi auto,SPECIFIC=9369,DATABASE=objects,

  2. The one in the picture looks like based on the patents granted in 1913 to Edmund Tatarek, Béla von Döry, Friedrich Blum, Ladislaus Szapary and Franz Kretz, all from Hungary.


    In 1914 the British tried this self-loading rifle design based on a modified P13 in caliber .276 Pedersen. It was also designed by Edmund Tatarek from Budapest, Hungary.


  3. Fede iam inclined to aggree.the two examples you show are similar and the name is the same . the second photo shows a rifle descibed elswere as the kretz rifle useing a coil spring in the but hooked to a chain that operates the bolt.

  4. Agreed Fede. This was based on the Pattern ’13 rifle in .276 inch calibre. It was part of the British semi-auto rifle trials that took place 1909-1914.

    I have the weapon drawings and photographs. It has a blow forward gas trap at the muzzle like a Bang.

    An example exists in the Imperial War Museum collection in London.


  5. I should have said in my previous post that the calibre was not .276 inch Pederson as mentioned by Fede but .276 inch Enfield, a much larger and more powerful round intended for the Pattern ’13 rifle. The Pederson had not been developed at the time this rifle was made.


  6. Tatarek Patent

    UK Tatarek automatic rifle

    Scroll down page for images

    Conversion attempts for Lee Enfield .303

    Device for Transforming a Repeating Gun into an Automatic Gun. United Kingdom Patent 191305866-A
    [en] 5866. Tatarek, E., Blum, F., Kretz, F., Szapary, G. L., and Dory, B. von. March 10. Breech actions, sliding breech-block. – Consists in special mechanism for converting a hand-operated repeating rifle into an automatic rifle operated by the powder gases. On the muzzle of the barrel is arranged a sliding sleeve 4, Figs.
    1 and 8, adapted to be driven forwards by the rush of gases from the muzzle. This forward movement tensions a spring 13, Fig. 1, which afterwards actuates the
    breech-opening mechanism. The sleeve is held in its forward position by a pivoted catch 16 acted on by the spring 13 and by a smaller spring 15, Fig. 8. The invention is shown applied to a Mannlicher rifle in which the breech-bolt cannot be opened until the trigger is released. When the trigger is released, the spring 13 pulls a rack 11, Figs. 1 and 3, forwards, thereby rotating a pinion 9 and driving rearwards a second rack 12, which is connected by a rod 19 to the bolt operating slide. When the tension of the spring 13 is lowered, the catch 16 is released by the smaller spring 15, Fig. 8, and the sleeve 4 is returned to its normal position by a spring 6.
