FFV-890C: The Swedish Service Rifle That Never Was

by Seth Cane

FFV-890C

Although Sweden has maintained its neutrality for almost 200 years, it has managed to foster many great advances in small arms over the course of modern history and remain at the forefront of arms technology and military capability. Today we will examine one of the least-known Swedish designs that came quite close to being the standard service rifle of the Swedish armed forces instead of the FNC; the FFV-890C.

The story begins in the early 1970’s where Sweden was seeking a new service rifle to replace the rather outdated AK4. The AK4 was a locally-produced (and slightly modified) copy of the venerable HK-G3 rifle introduced to the Swedish armed forces in 1965. Although the AK4 was a reliable and easy to produce, budget-constraints and changes in the military’s logic (which at the time favored investments in aircraft and vehicles instead of small-arms) meant that mass-production never met the requirements of the Swedish military where the old Mauser rifles were still officially in use with rear echelon units and the Hemvärnet (Home Guard). At the same time, the adoption of the M16 by the Americans and the AK47/AKM/AK74 by the Soviets prompted Sweden to seek a new, lighter design in a caliber smaller than 7.62 NATO rather than continue to produce the AK4. Thus, new trials were put forth for the adoption of a service rifle that would be the AK5.

AK4 Rifle - Swedish copy of HK-G3
AK4 Rifle – Swedish copy of HK-G3

Trials for the AK5 were rather unique in that politics played no major role on paper but certainly lent themselves in the final selection; the neutrality of Sweden allowed a number of designs of differing backgrounds to be considered in initial testing which took place around 1974-1975. The candidates were:

  • HK-33
  • FN-FNC
  • FN-CAL (presumably used to compare with FNC as production stopped the same year as the trials began)
  • Colt M16
  • Steyr AUG
  • Beretta M70
  • Armalite AR18
  • SIG 540
  • Stoner 63
  • IMI Galil ARM and SAR (both designated FFV-890 during trials)

Problems with most of the designs were quickly found during winter cold-weather testing that immediately disqualified most of them from selection, with the only remaining candidates being the FN-FNC (the FN-CAL was disqualified for cost and when production ceased) and the IMI Galil-ARM/SAR. Although the Galil-ARM and SAR tested were international export models produced by IMI, both had been submitted and re-designated “FFV-890” by Försvarets Fabriksverk (FFV), a defense manufacturer that existed from 1943-1991 that also maintained ownership of the Bofors Carl Gustav state arsenal, in hopes of producing the rifle on license as was the case with the HK-G3. Although the Galil-ARM was unmodified, the Galil-SAR had a brass plate riveted over IMI’s markings on the receiver and given new markings. This was only done to the SAR model; the ARM kept its original markings, possibly because FFV found the SAR as having a greater chance of adoption than the heavier ARM.

FFV-890 Model SAR. Note Brass plate affixed to Receiver
FFV-890 Model SAR. Note Brass plate affixed to Receiver
FFV-890 Model ARM used in Trials
FFV-890 Model ARM used in Trials

During the years of 1975-1979, the Galil-ARM was discarded from the trials and the SAR was modified by FFV to decrease weight, reduce size, optimize for cold climates and reduce manufacturing costs. The modifications included the following:

  • Shortening of the gas tube and piston
  • Redesigning the handguard from a 1-piece unit to a 2-piece panel affair like the FN-FAL with new retainers
  • Enlarging of the magazine release, right hand selector and trigger guard
  • Downsized magazine-release housing
  • Shortening of the barrel to roughly 13 inches (330mm)
  • Attachment of a case deflector to the dust cover
  • Selector markings changed from S-A-R to S-A-P (S- Säkrad – safe; A- Automateld– automatic fire, P- Patronvis eld – single shots)
  • Addition of a rubber gasket to the rear of the recoil-spring as a buffer and to prevent oil from escaping during firing
  • Rifle repainted bright OD-green instead of black

It should be noted that most components on the FFV-890C were prefabricated by IMI with only the handguard assembly being a likely FFV-manufactured component. Despite this, there is some indication that the receiver may have also been manufactured by FFV as it lacks the lightening-cuts and markings used by IMI during the period. The FFV-890C is unusual compared to the Galil in that the receiver, recoil assembly, dust cover and bolt assembly are all serialized to the weapon; at the time, only the receiver, bolt and dust cover were serialized on Galil rifles. This practice was later dropped with only the receivers being serialized.

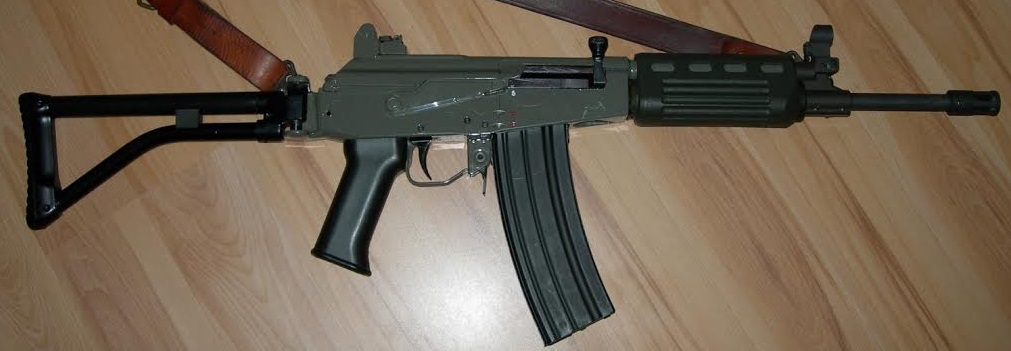

FFV-890C, Model 1
FFV-890C, Model 1

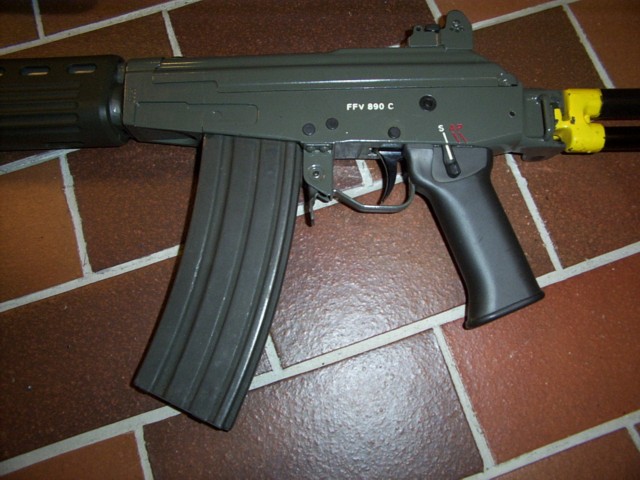

FFV-890C, Model 1. Some rifles had the stock-brackets painted Yellow during trials
FFV-890C, Model 1. Some rifles had the stock-brackets painted Yellow during trials

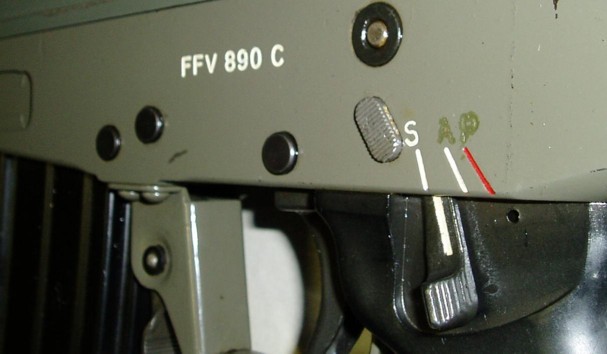

FFV-890C, Model 1. Left Side
FFV-890C, Model 1. Left Side

The redesigned FFV-890 (Galil-SAR) was designated FFV-890C (the addition of the ‘C’ indicating an update similar to American use of ‘A1/A2’ designations) and was presented as a complete rifle package, including a three-vial cleaning kit and rod, a multi-purpose Galil tool, rifle-grenades and a sling comprised of a Galil sling webbing with HK metal hooks attached.

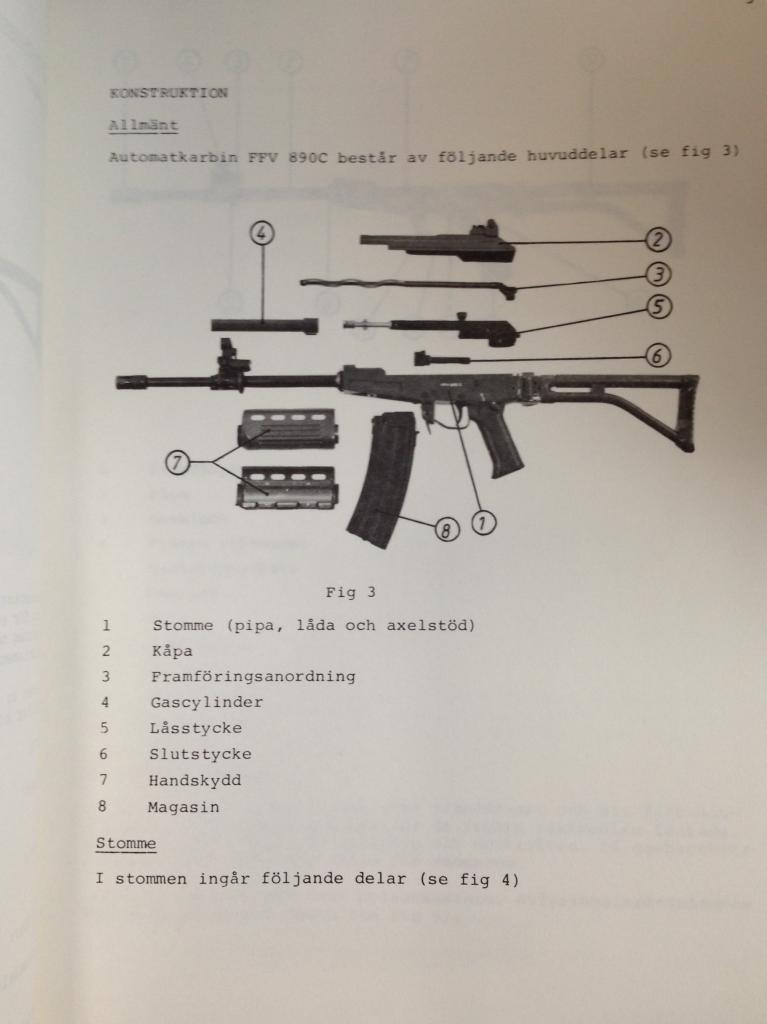

FFV-890C "Utkast" (draft) manual, dated 1979
FFV-890C “Utkast” (draft) manual, dated 1979

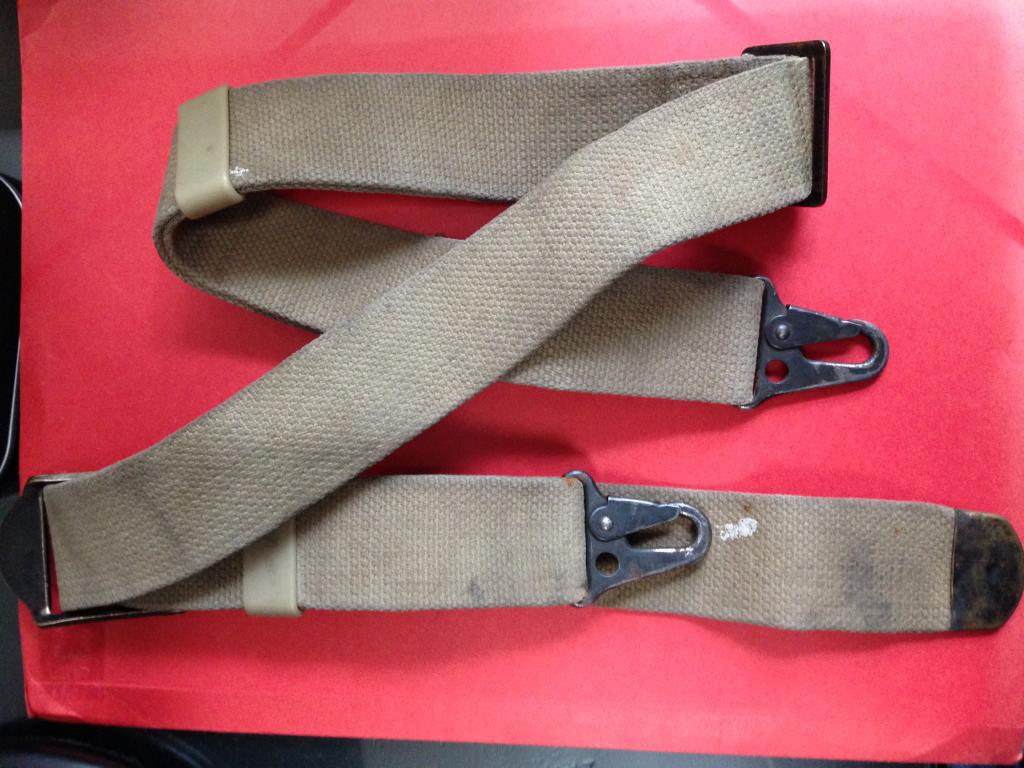

FFV-890C Sling
FFV-890C Sling

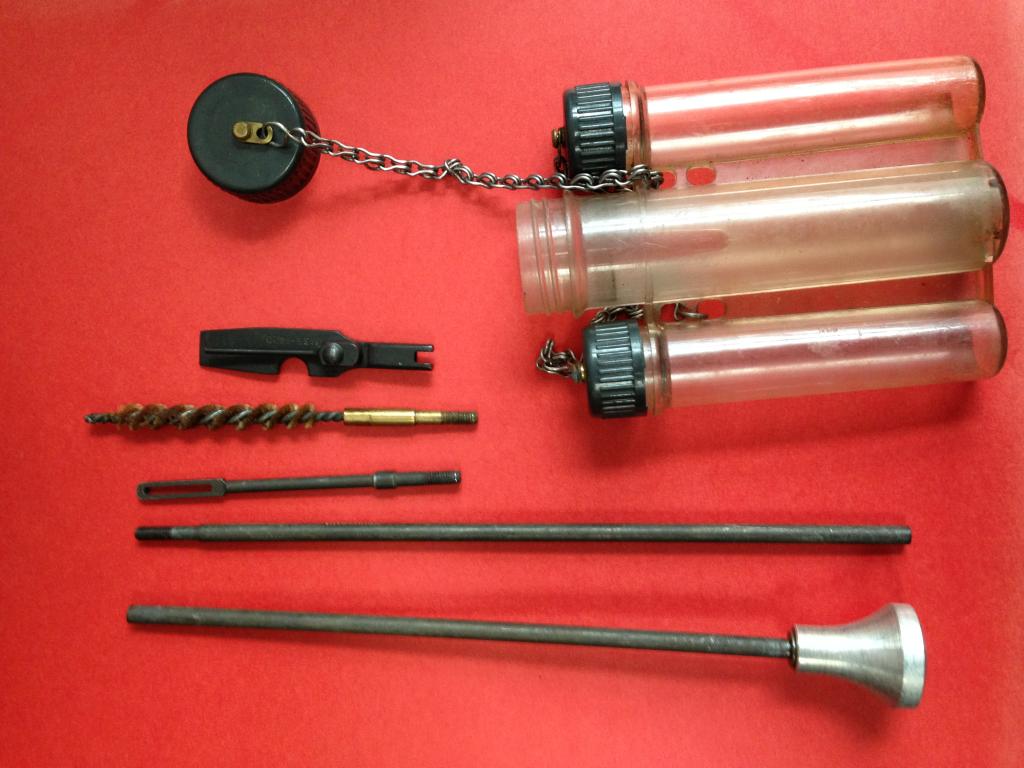

Cleaning Kit and Combo-Tool
Cleaning Kit and Combo-Tool

At some point after 1979, the FFV890C was modified again into the Model-2(not an official designation) with the following changes:

  • Charging handle changed from vertical to horizontal style like AK47/AKM
  • Enlarged trigger guard replaced by standard Galil guard
  • Magazine release assembly replaced by standard Galil parts
  • Right selector further enlarged with flat section mounted at the center
  • Additional button cross-safety mounted through the receiver similar to an FN-MAG
  • Rear sight changed from Galil to style similar to FN-SAW/M249
  • Stock painted bright OD-green

The FFV-890C Model 2 presumably incorporated changes requested during the trials. It is unclear why most of the changes were made, as they appear unnecessary for the design with most of the ‘upgrades’ incorporated into the FFV-890C Model 1 being removed. With the new safety mechanism, it is implied that a user could have the rifle set to either Semi-or Full-Automatic firing modes and still have the rifle on safe with the cross-safety, though it is unclear if this was the intent of the design. Some Model 2 rifles even had modified G3 selectors affixed to the main axis on the left side; there was one example on display at the former Carl-Gustav museum in Eskilstuna, though the museum has long since closed. To date it is unknown how many Model 2 rifles were produced, but the number was certainly small, even compared to the standard Model 1 FFV-890C.

FFV-890C, Model-2, Center, located at the now closed Carl Gustav Museum in Eskilstuna. This rifle had a G3-selector added to the left-side, but is not pictured
FFV-890C, Model 2, Center, located at the now closed Carl Gustav Museum in Eskilstuna. This rifle had a G3-selector added to the left-side, but is not pictured
FFV-890C, Model-2, Left side with cross-safety button
FFV-890C, Model 2, Left side with cross-safety button

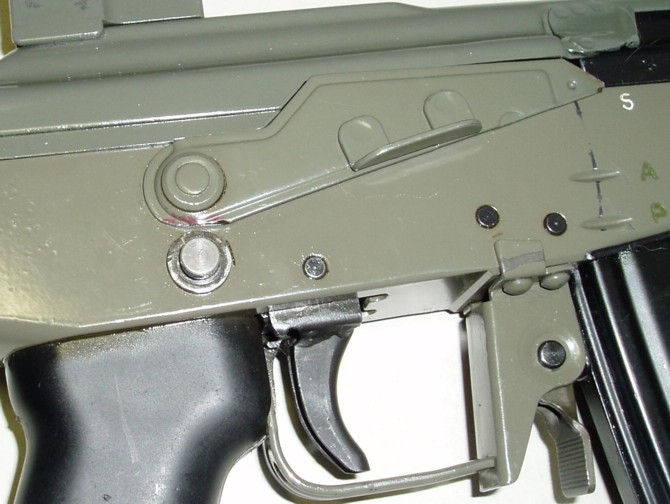

FFV-890C, Model-2, Right side with cross-safety button. Note modified right-selector and the changed magazine-release and trigger-guard. The trigger appears to have been swapped with one from a HK-G3
FFV-890C, Model 2, Right side with cross-safety button. Note modified right-selector and the changed magazine-release and trigger-guard. The trigger appears to have been swapped with one from a HK-G3

Further testing of the FFV-890C and FN-FNC was conducted during the 1979-1980 period, where the FFV-890C was considered favorable over the FNC by the participants but labeled the opposite in the trial documents. The most likely reason for this was costs; because tooling for the AK4 was already setup for stamping components, it was deemed a step back to revert to milling and investment casting over the more economical method already employed. The Galil/FFV890C is almost entirely machined with the only stamped components being the magazine-release, dust cover, trigger guard, and right-safety selector. The FNC, on the other hand, incorporated a stamped upper-receiver and handguard assembly with an easy to machine alloy lower-receiver, cutting costs significantly. FFV had made attempts to incorporate a stamped-receiver like the AKM into the Galil/FFV-890C design, but like other attempts to do so with the Galil, this proved unworkable.

There were a few other possible political reasons for choosing the FNC over the FFV; first, the Israeli government did not have great favor amongst the Swedish social democratic government at the time (likely due to its seizing of territory after the Yom Kippur War of 1973) and discouraged adoption of an Israeli-licensed design; second, although Sweden was officially neutral, internally it considered the Soviet Union to be a greater threat than the West and adoption of a AK47-derived design was also discouraged.

Ultimately, the FN-FNC was declared the winner by the FMV-Försvarets Materielverk (Swedish Defence Materiel Administration) and modified further into what became the AK5, which was fully-adopted in 1985. That same year, production of the AK4 ceased.

FFV made attempts to market the FFV-890C internationally but failed to garner any buyers. The rights to the FFV-890C design were then sold to the Finnish company Valmet, who presumably incorporated some of the design characteristics into their own weapons. It is estimated less than 1000 FFV-890C prototype rifles were made (all bearing 4-digit serial numbers beginning with ‘0’) with some still existing in police armories and a small handful having trickled out into the civilian market. It is rumored about 2-3 damaged rifles were de-militarized and imported in the early 2000’s as parts kits by SARCO company, though no completed rifles have ever been built on US soil. As such, information on the FFV-890C has remained relatively nonexistent despite it having been close to adoption as the AK5 service rifle of the Swedish armed forces instead of the FN-FNC. Today, both the AK5 and AK4 remain in service with the latter seeing use with reserve units such as the Home Guard.

Complete setup showing the rifle, cleaning kit, sling and rifle-grenade
Complete setup showing the rifle, cleaning kit, sling and rifle-grenade (click to enlarge)
FFV-890 disassembled
FFV-890 disassembled (click to enlarge)

Special thanks to my friends in Sweden for helping make this article possible!
