We have previously mentioned Fridtjof Brøndby, a Norwegian arms designer who created a number of self-loading rifle designs in the 1930s. Last time we were looking at his model 1933 maskinpistole (submachine gun), and today we have a bunch of photos of his full-size self-loading rifle prototype. We still have very little information on the man – or on the details of just when this rifle was made and what caliber it uses – but we can learn a lot from the photos.

Brondby Self-Loading Military Rifle

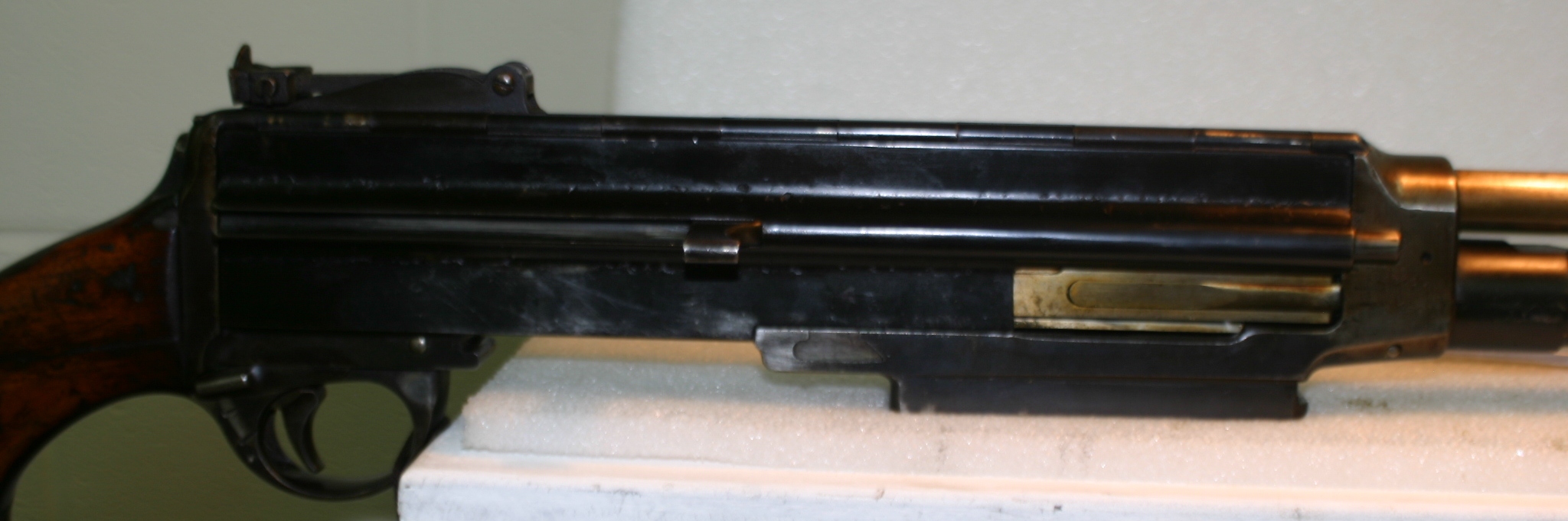

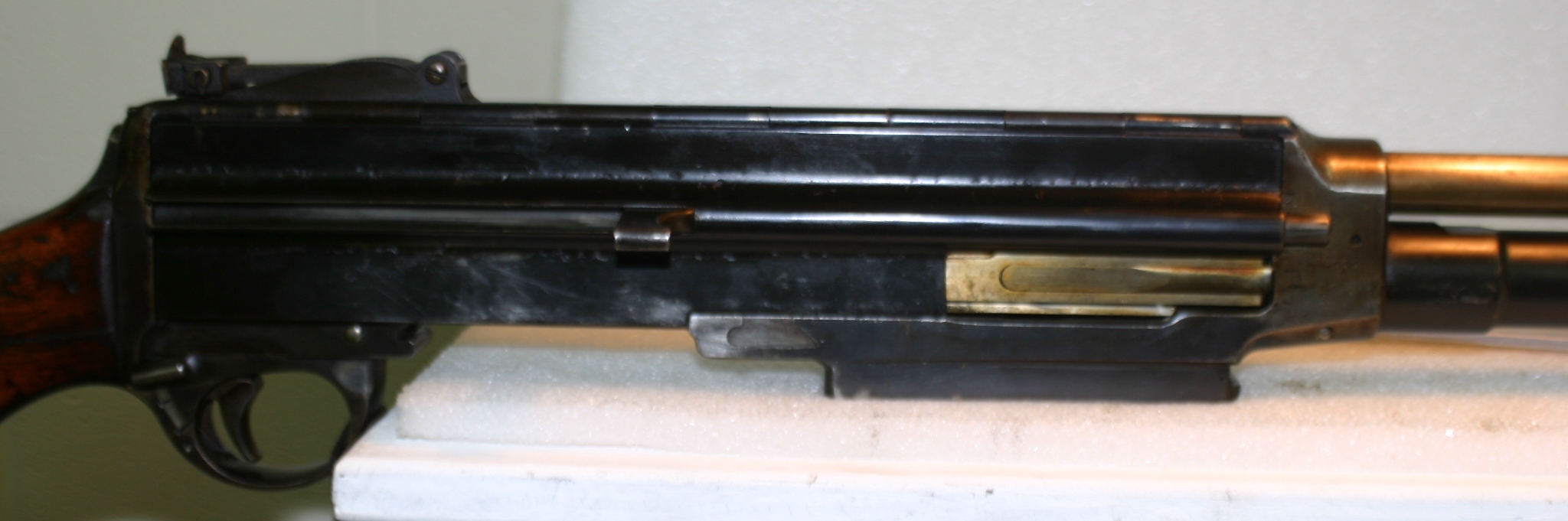

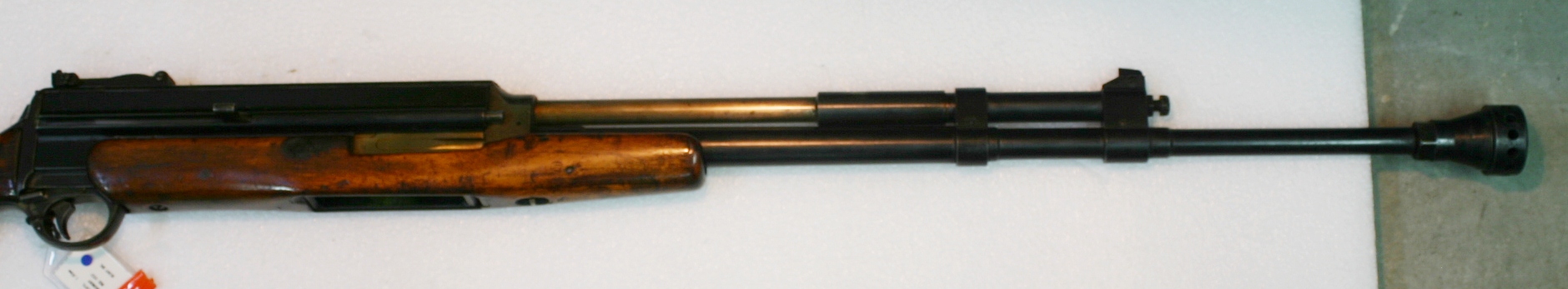

Brondby Self-Loading Military Rifle (photo courtesy National Firearms Centre, Leeds, UK)

This rifle is in the collection of the UK’s National Firearms Centre (aka Pattern Room), which suggests that it was sent to England for military testing. We don’t know the details of those test (if they were ever completed), but clearly the rifle didn’t do well enough to be developed further, or adopted. Still, the design seems pretty good for the early 1930s, if a bit bulky.

The broad view is that the Brøndby rifle is magazine fed, fires from an open bolt, operates with a long-stroke gas piston, and uses a vertically-traveling block which locks the bolt into the bottom of the receiver.

Disassembly is wonderfully simple – first the lower handguard detaches much like a double-barrel shotgun foreend:



Brondby rifle disassembly
Handguard removal (photo courtesy NFC, Leeds, UK)

Next, the entire right side of the receiver opens up on a long hinge to reveal the internals:

Brondby rifle sideplate open

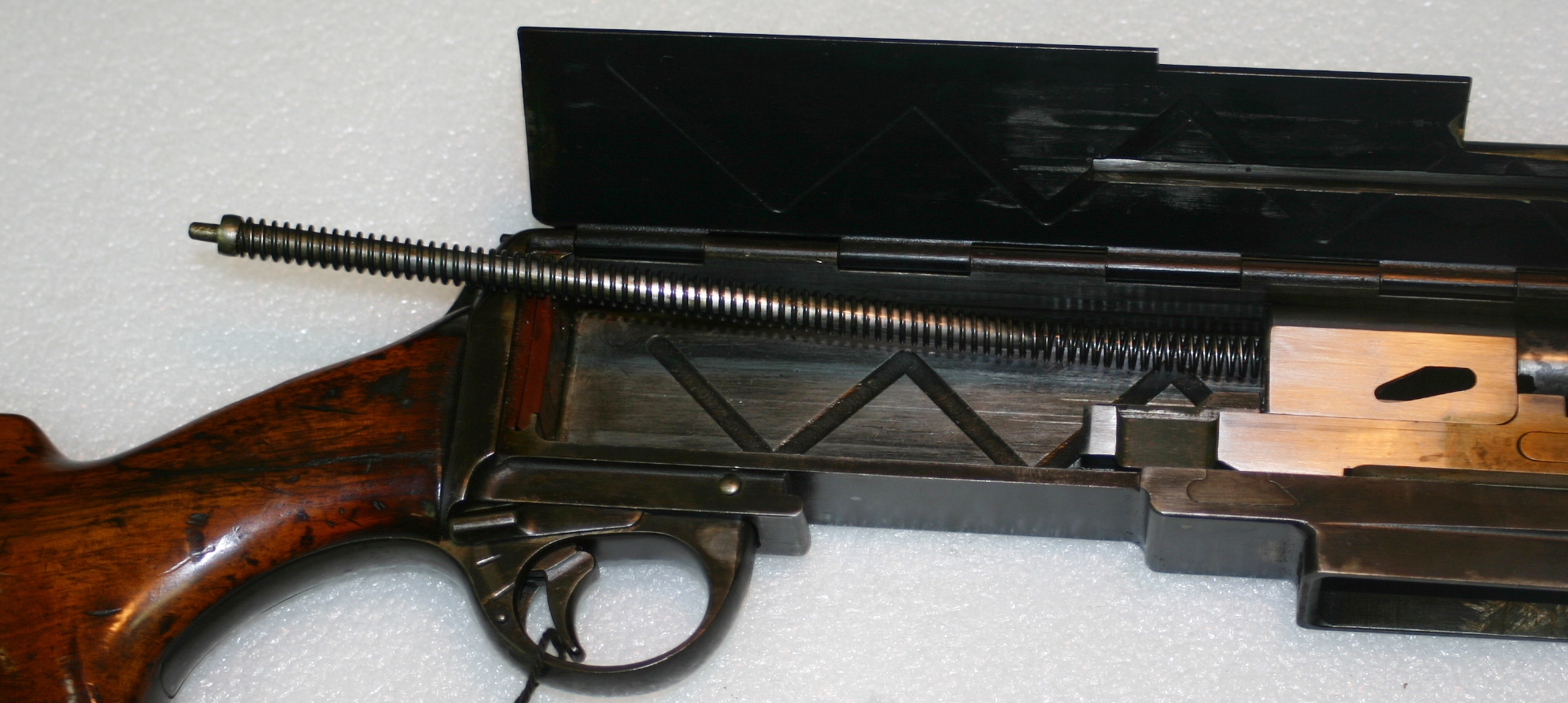

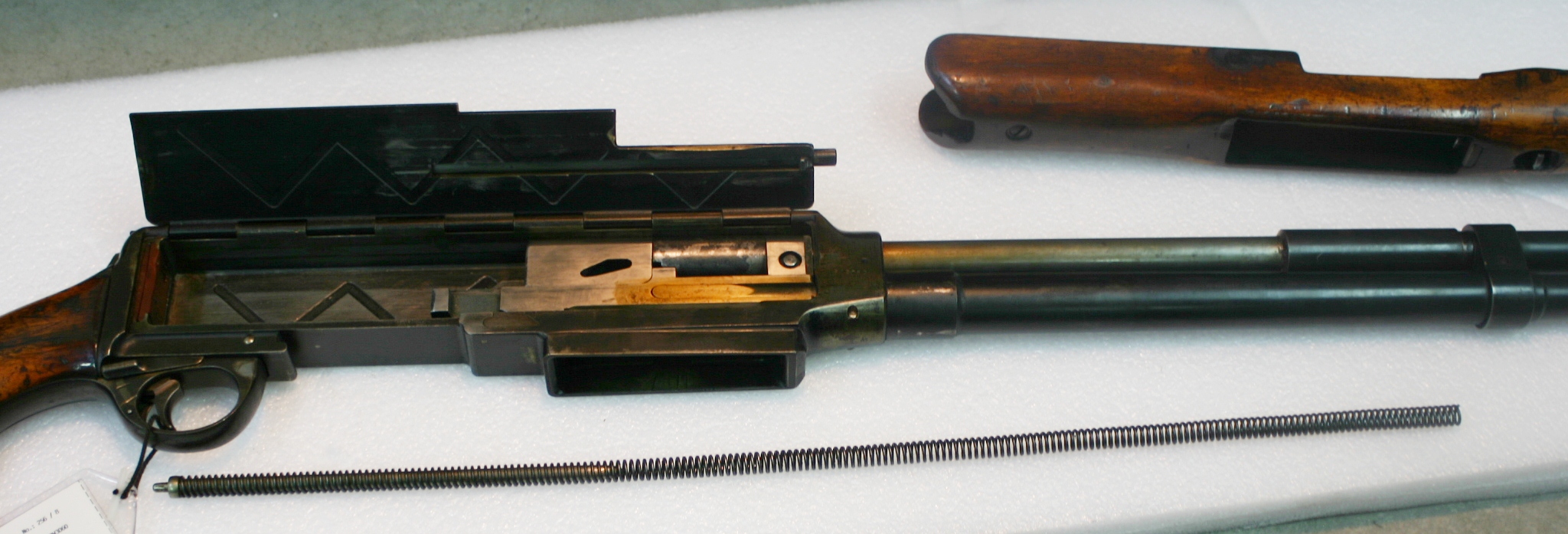

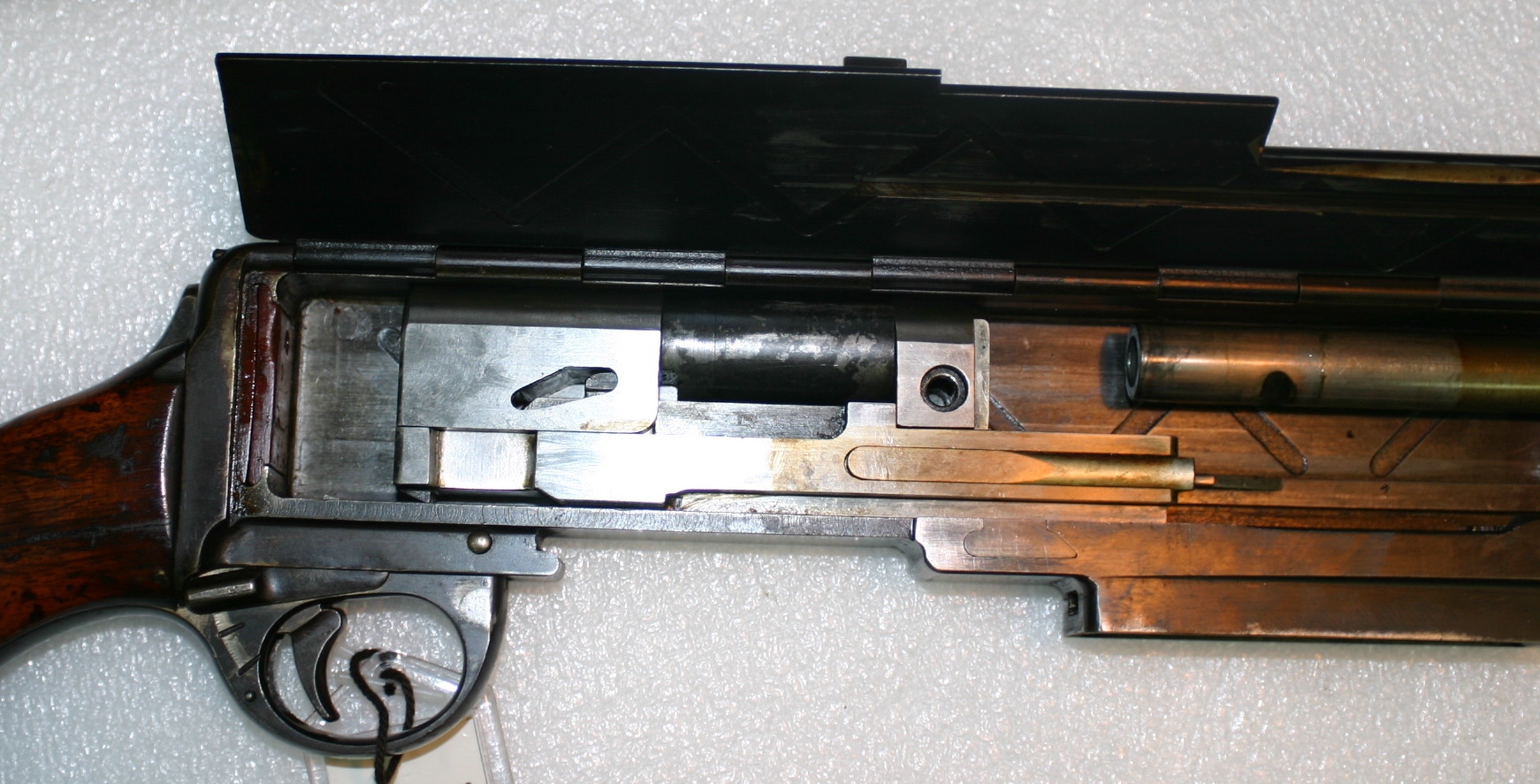

Sideplate open for disassembly or cleaning (photo courtesy NFC, Leeds, UK)

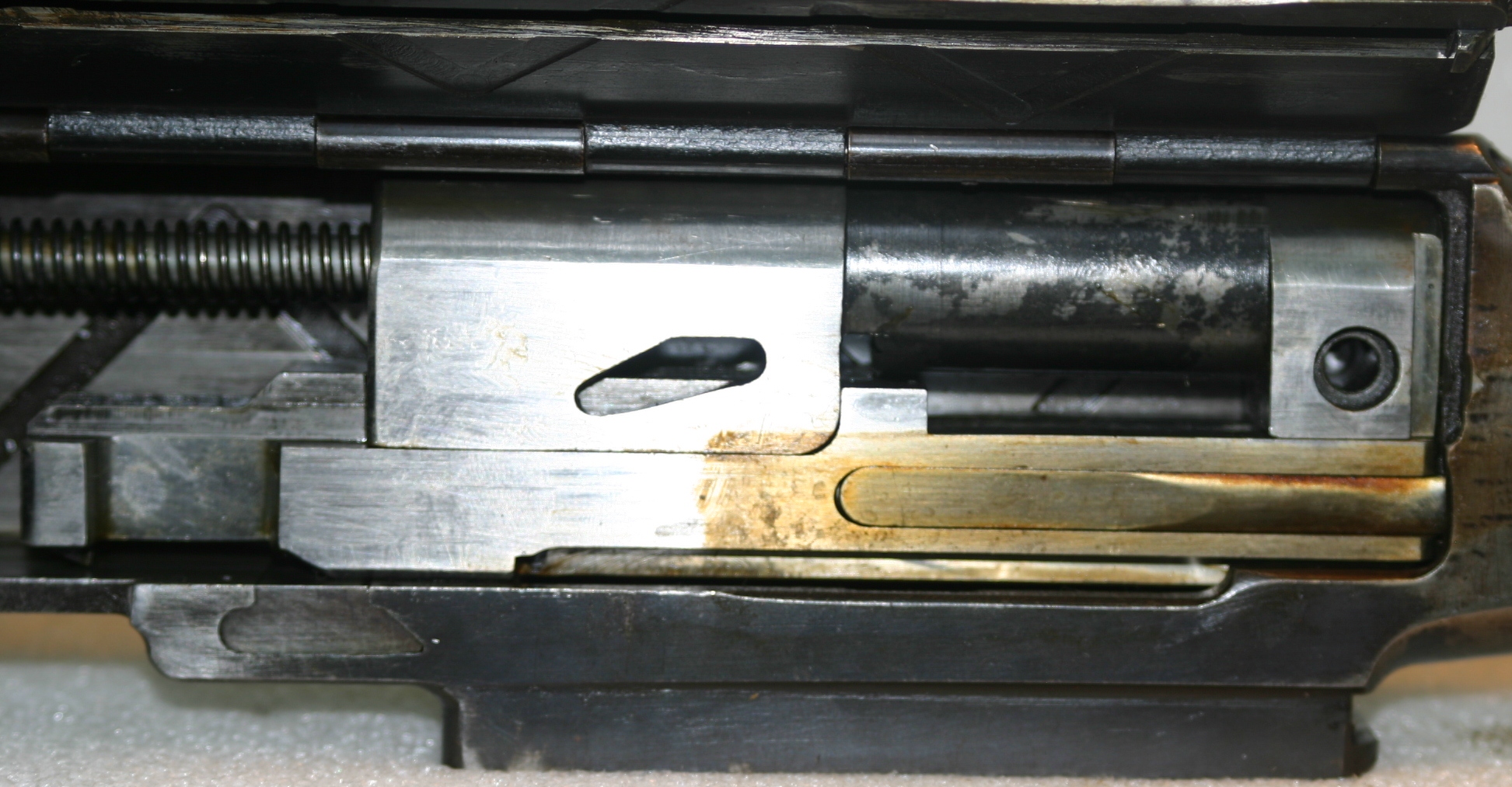

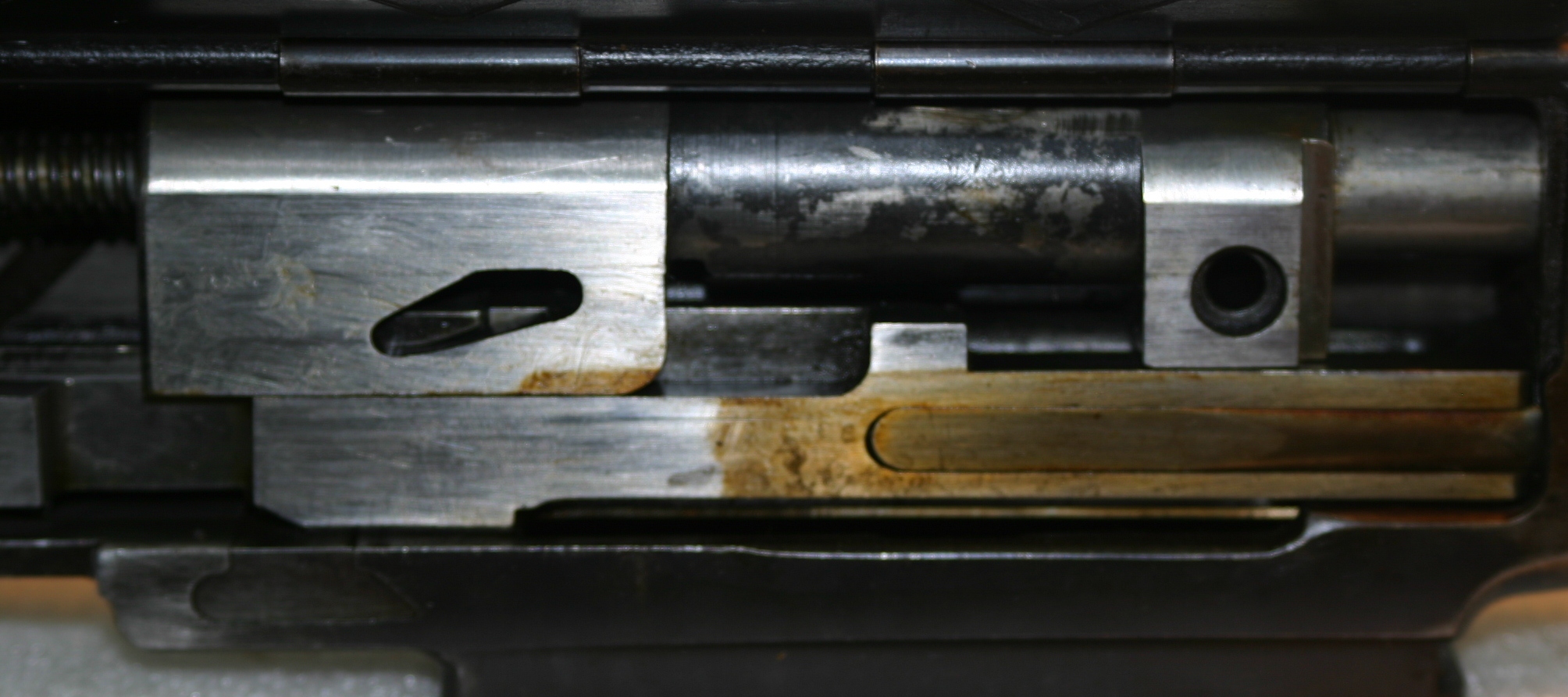

From here, most of the operating mechanism becomes clear. The gas piston atop the barrel is connected to a bolt carrier inside the receiver (the round pin at the front of the carrier is the pin connecting it to the moving piston – remove that pin and the carrier can be removed). A square block somewhat like a C96 Mauser or Bergmann 1910 locking block is carried inside the bolt carrier, and drops down through the bolt to lock into the bottom of the receiver when the bolt is in battery. On the bottom of the receiver just behind the magazine well you can see the locking shoulder this block pushes against – it is a removable piece, allowing it to be hardened independently of the receiver body, and to be interchanged to change the headspace of the rifle.

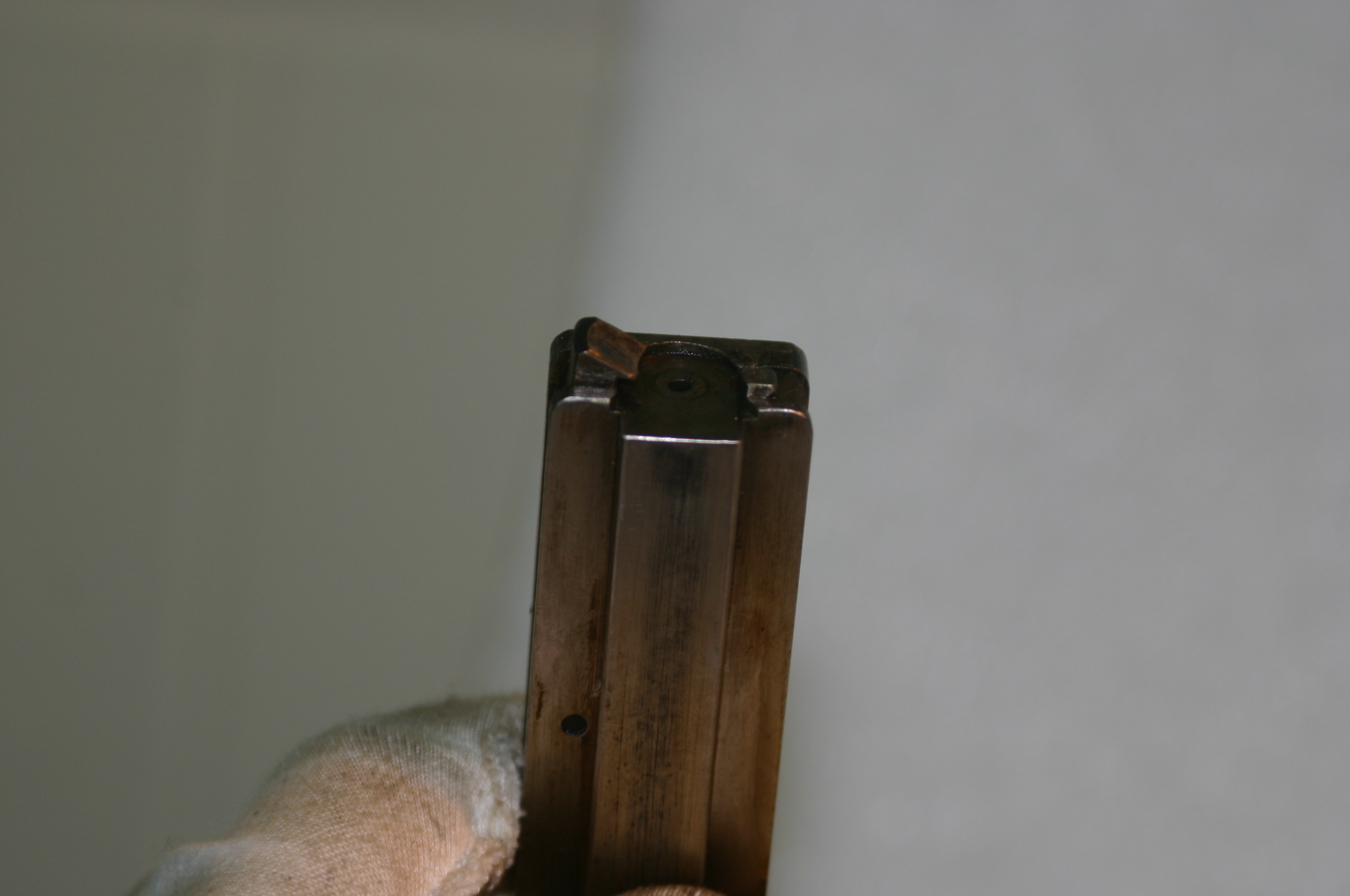

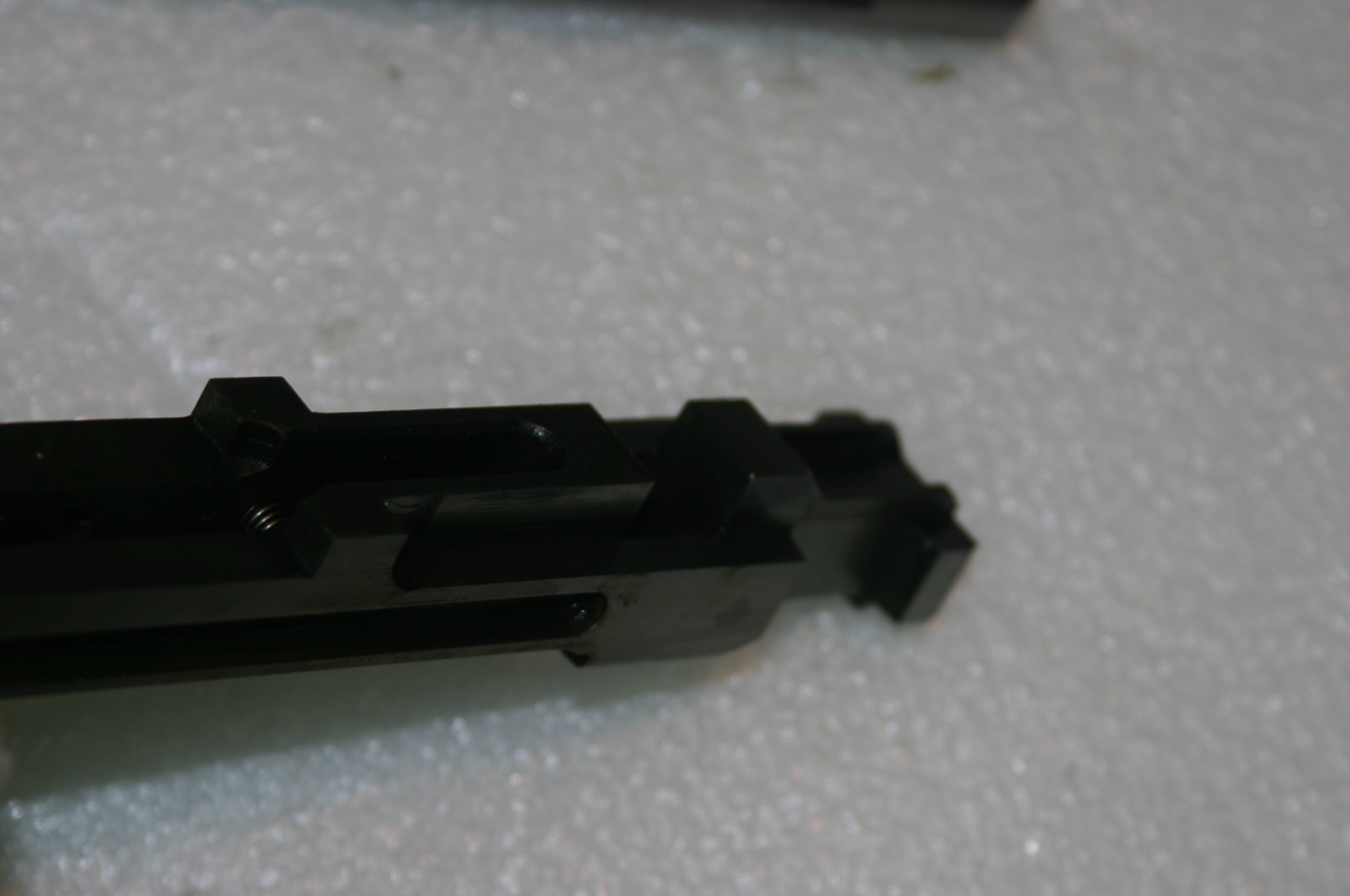

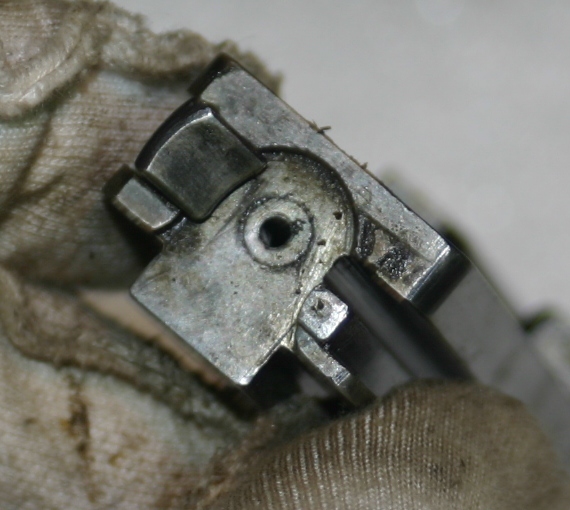

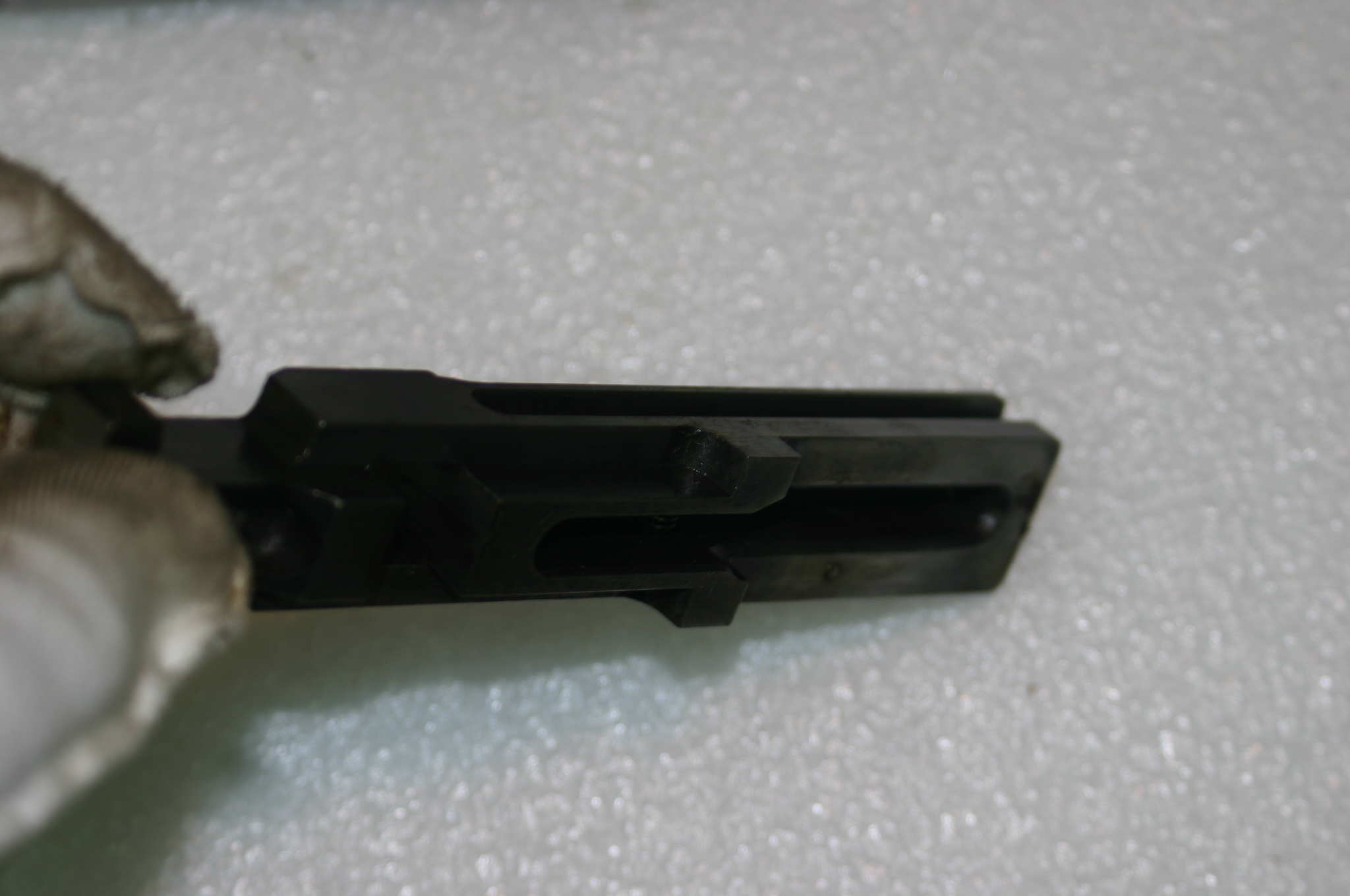

Brondby rifle bolt and carrier

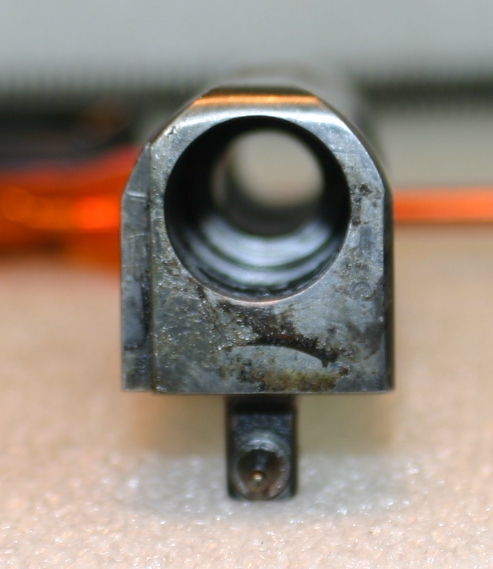

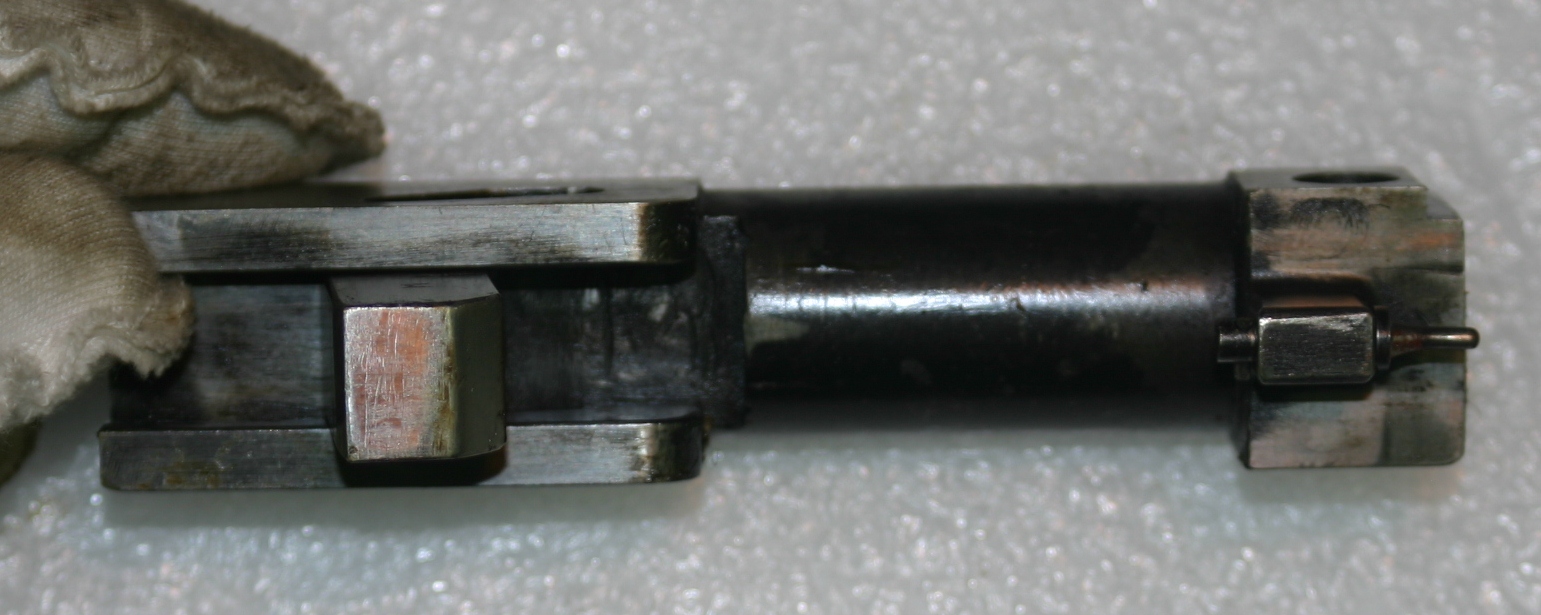

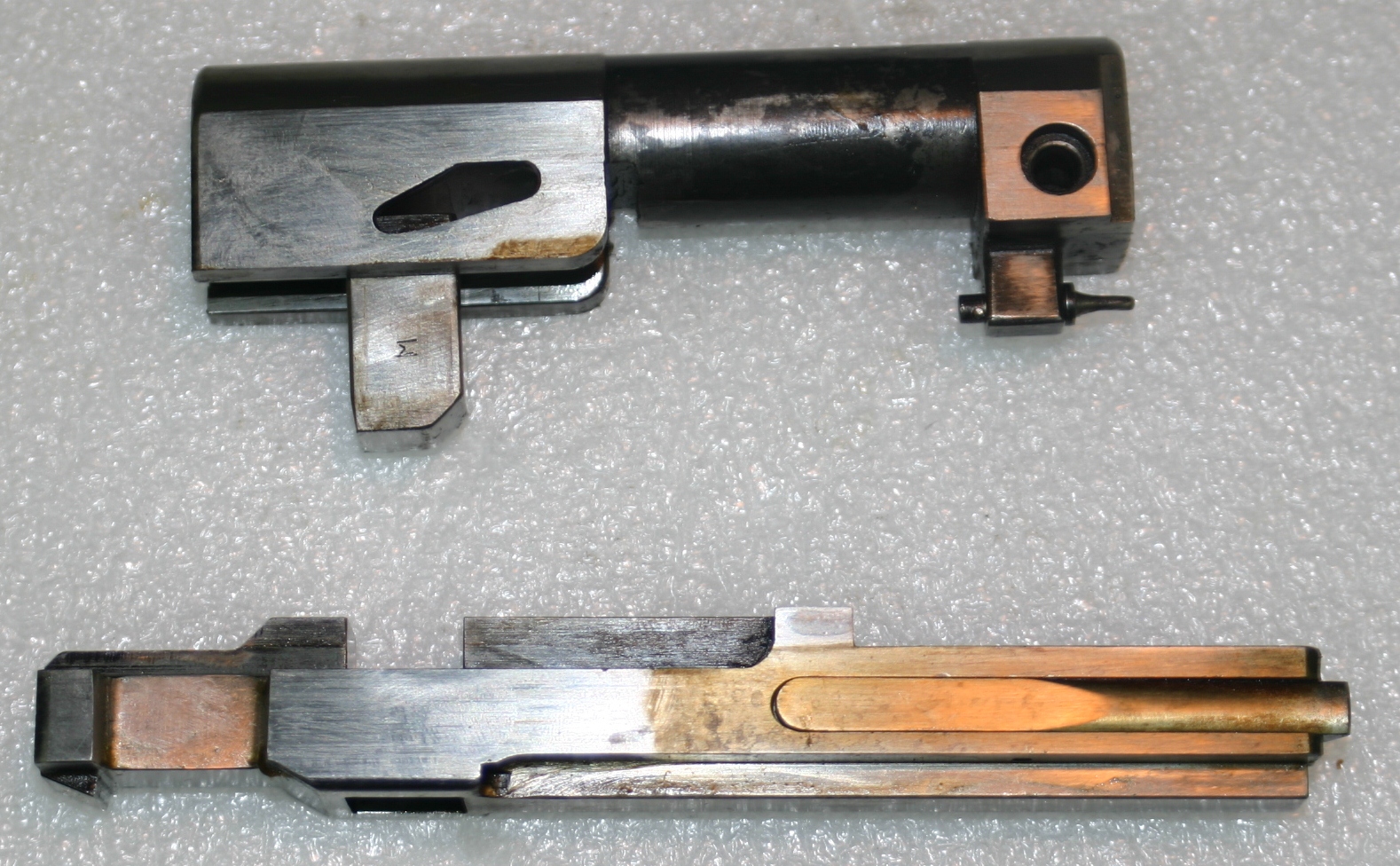

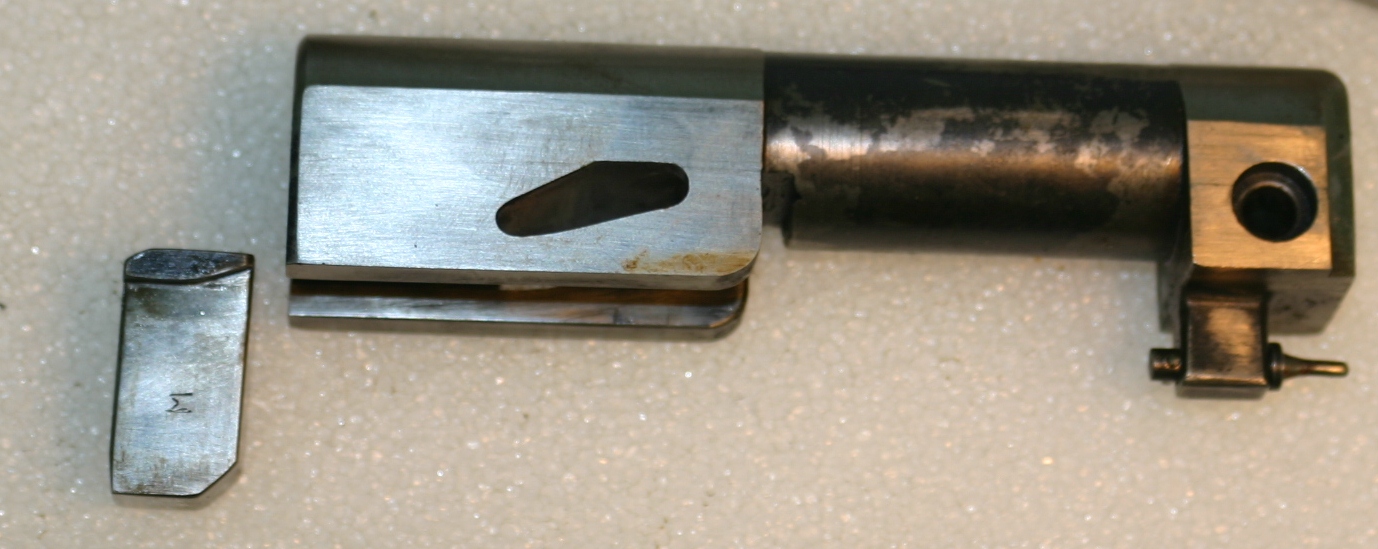

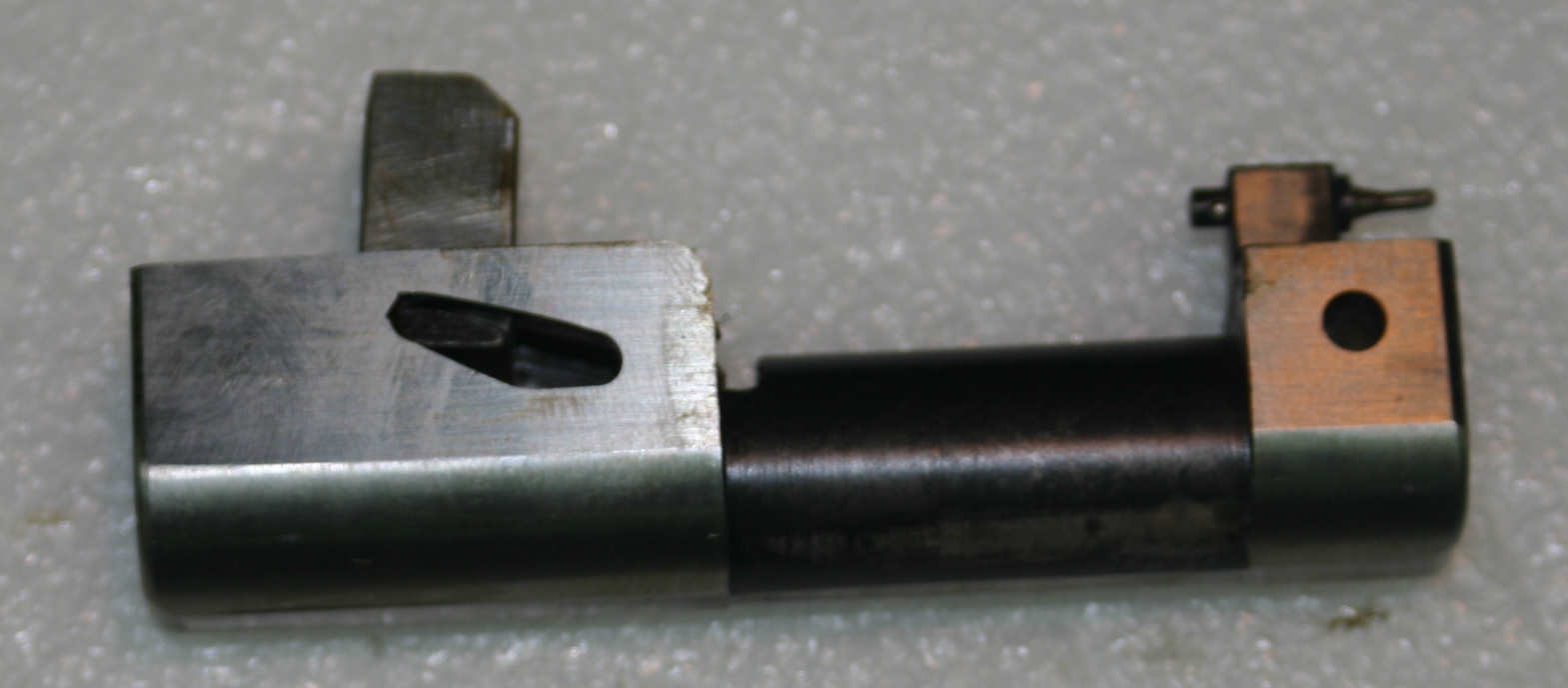

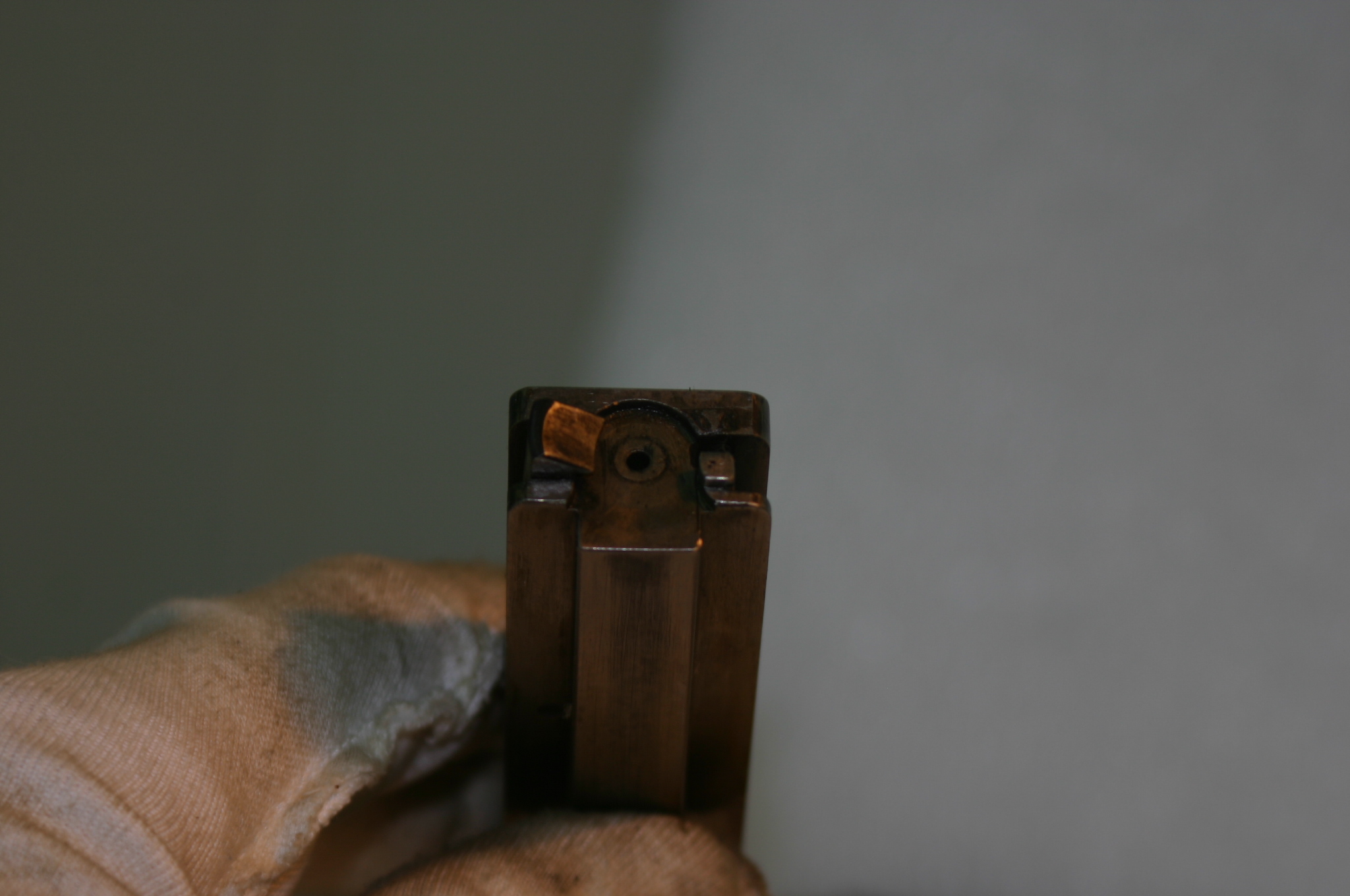

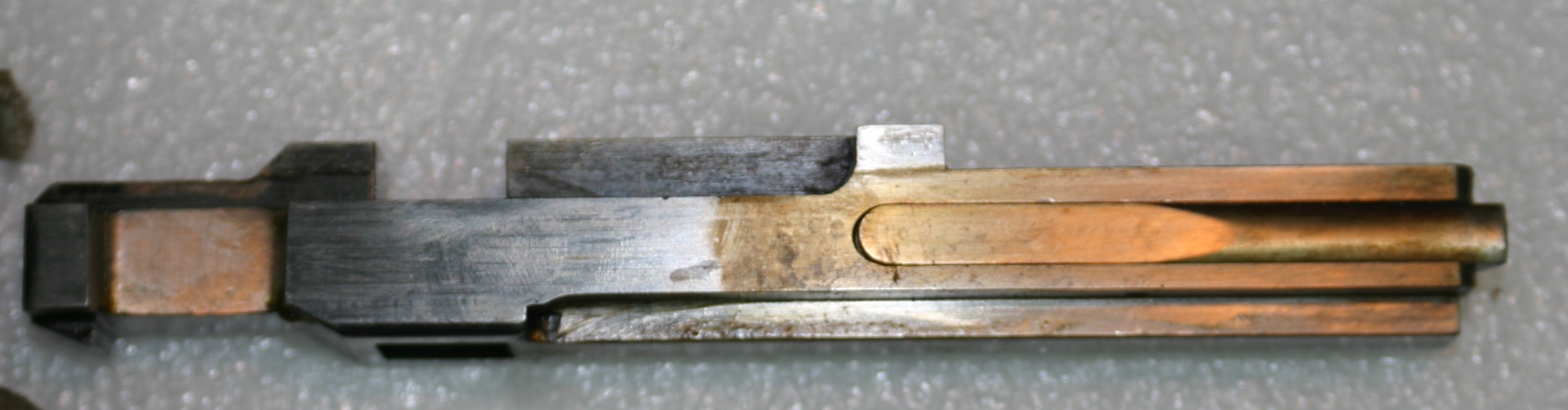

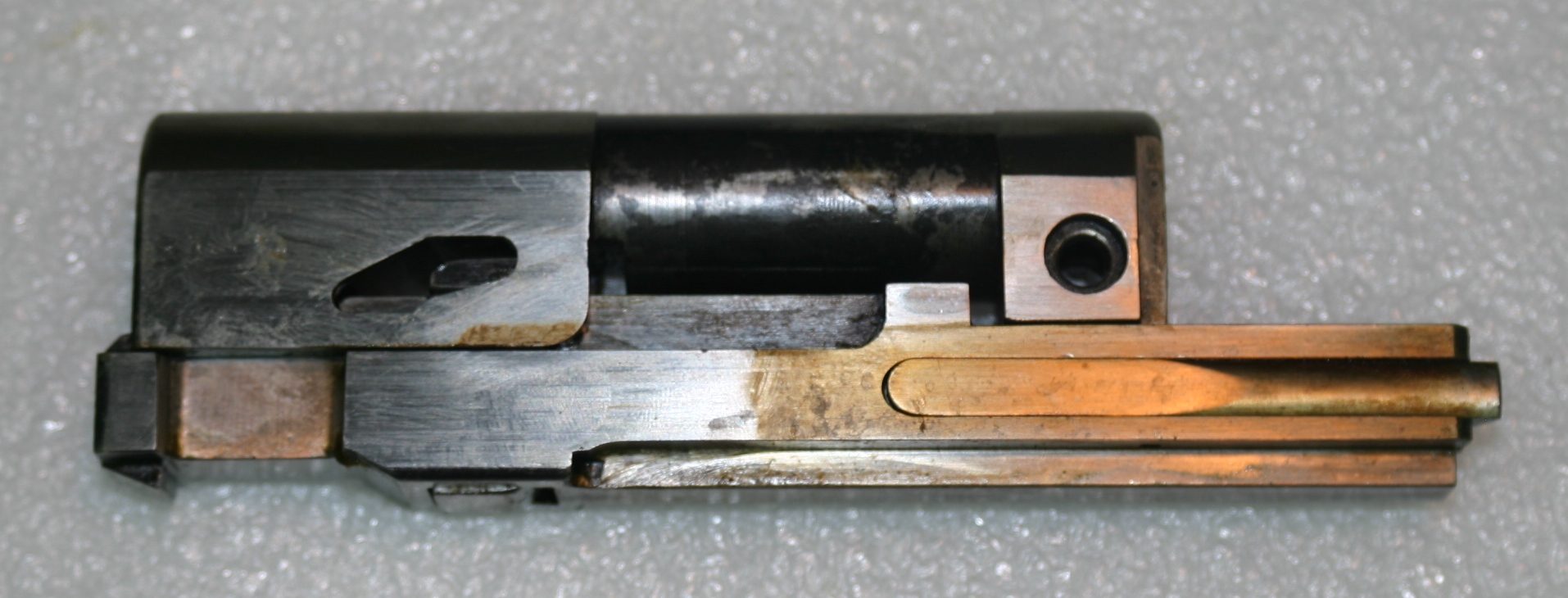

Brondby rifle bolt and carrier. Note locking block and its matching square hole in the bolt. Also note the fixed firing pin and sear engagement surface at the far left (rear) of the bolt (photo courtesy NFC, Leeds, UK).

The rifle fires from an open bolt, as evidenced by the fixed firing pin and lack of any linkage from the trigger up to the bolt. Instead, the very rear of the bolt has a catch which engages the firing mechanism, so that upon pulling the trigger the bolt is driven forward by the mainspring, strips a round from the magazine into the chamber, the locking block drops into place, and the round fires. Gas from the barrel then vents into the piston, which pushes the bolt carrier backwards, which cams the locking block upwards. Once the locking block clears the locking shoulder in the bottom surface of the receiver, the bolt and carrier travel backwards, ejecting the spent case and being caught by the sear at full travel, ready for another shot.

Brondby rifle cutaway
Brondby rifle cutaway view

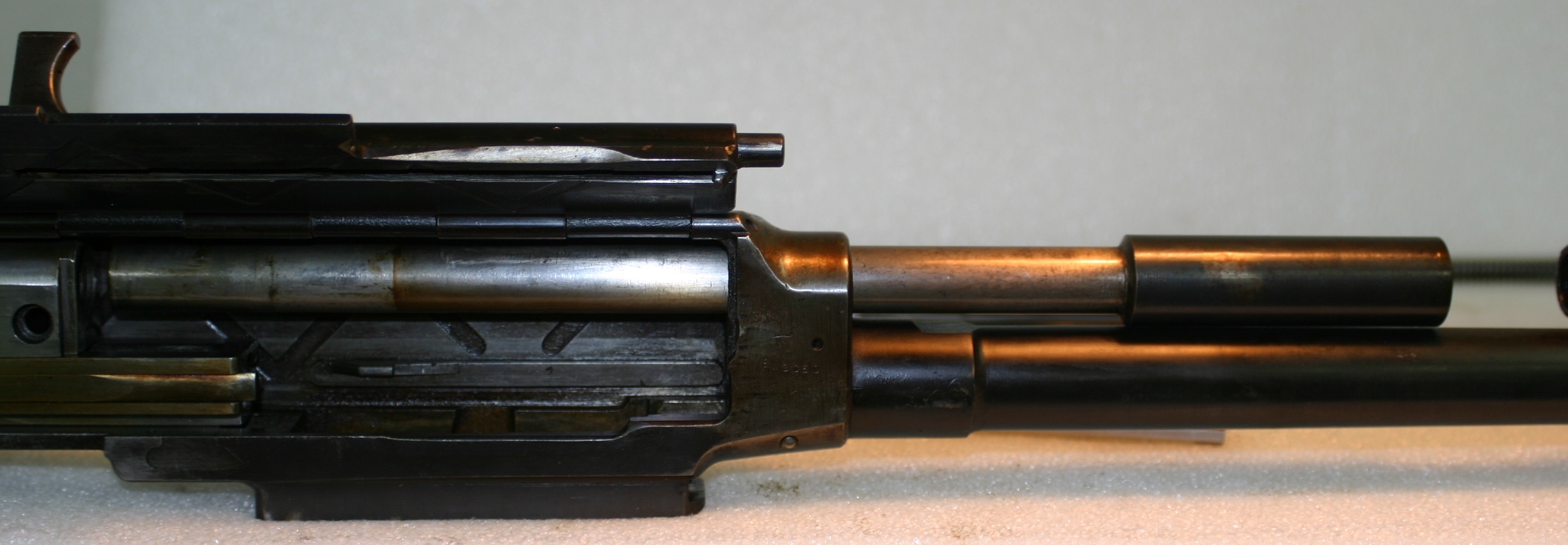

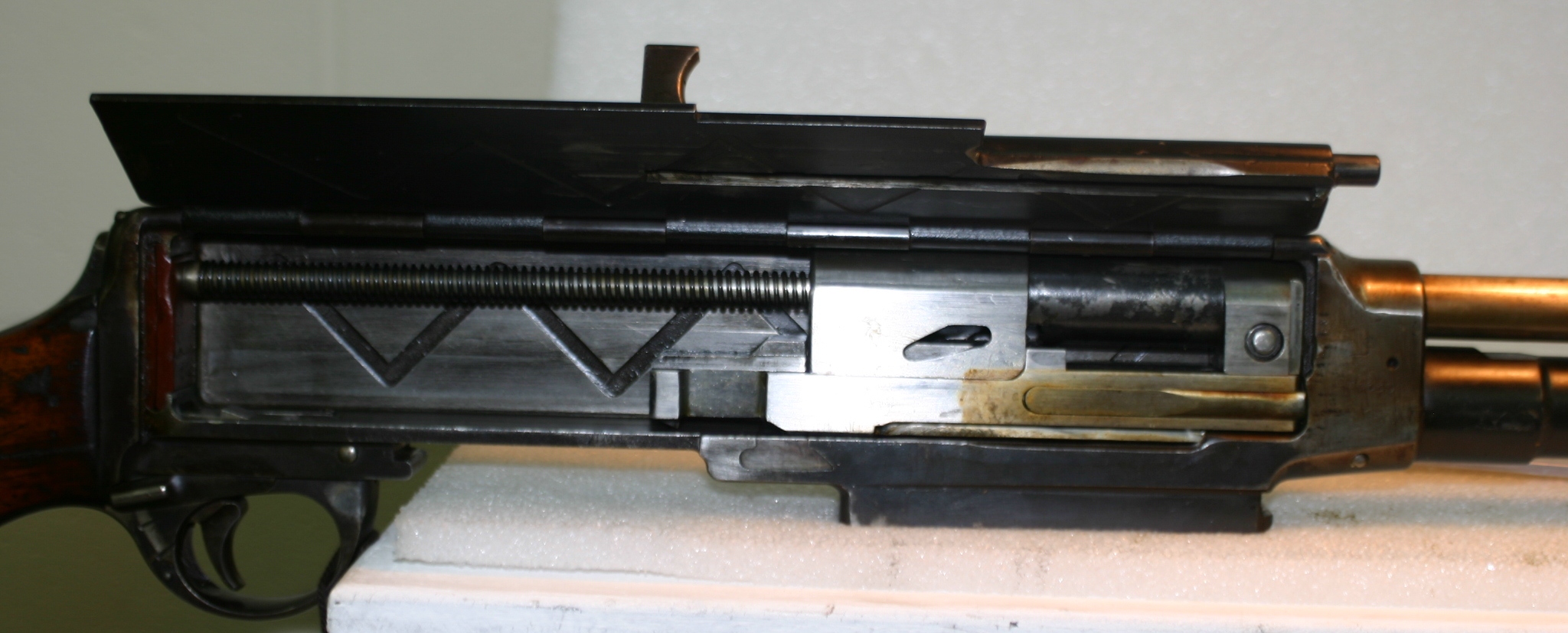

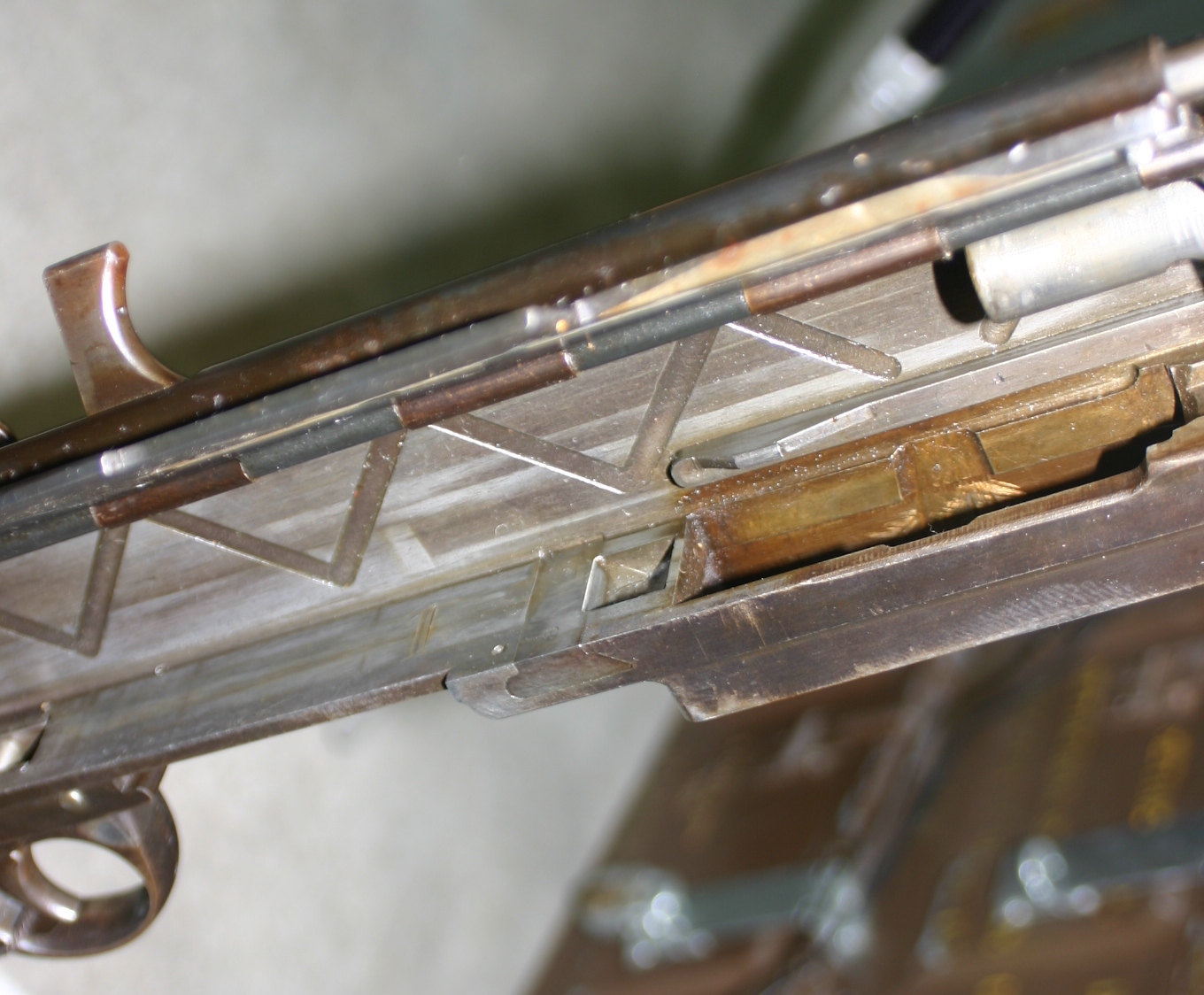

The safety lever near the trigger appears to have three detent settings, so I think it is safe to assume that the rifle could fire either semiauto or fully automatically. Also note the zigzag grooves cut in the receiver walls, very much reminiscent of the cuts on Israeli FAL bolt carriers. We can’t ask Brøndby about them, but they appear to serve the same purpose – giving dirt and carbon residue a place to go without interfering with the rifle’s operation.

Really, the only major issue I see with the design is the lack of a safety mechanism to prevent out-of-battery firing. Since the firing pin is fixed to the bolt carrier and the carrier positively forces the locking block into place, firing out of battery would not be possible. It would be nice to see a redundant system in case the locking block were damaged or inadvertently left out when reassembling the weapon, though.
